二 進 制 十 進 制 十 六 進 制 換 算
Sample file of Saber out of band programming
|
00disable |

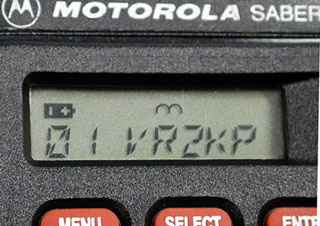

00 N | 00 N | 00 N | 00 L | 00 N | 00 N | |||||||||||||||||
| 01 enable | 01 Y | 03 Y | 01 Y | 01 H | 01 Y | 01 Y | |||||||||||||||||
| CH Entry |
CH |
Zone |
Rx Freq |
Tx Freq |
Tone |
Tone Freq | MDC ID on PTT | Pre/De emphasis | Enable XL | Power | TOT | Rx Only | |||||||||||
| Rx | Tx | Rx | Tx | ||||||||||||||||||||
| S2 | 01 | 00 | 19F226A0 | 19A5DB60 | 01 | 01 | 0455 | 0455 | 00 | 00 | 03 | 00 | 00 | 00 | 01 | 00 | 00 | 00000000 | 00 | 00 | 00 | 00 | 00 |
| S2 | 02 | 00 | 19F16350 | 19A51810 | 01 | 01 | 0455 | 0455 | 00 | 00 | 03 | 00 | 00 | 00 | 00 | 00 | 00 | ||||||
| S2 | 03 | 00 | 19F1C4F8 | 19A579B8 | 01 | 01 | 0455 | 0455 | 00 | 00 | 03 | 00 | 00 | 00 | 01 | 00 | 00 | ||||||
| S2 | 04 | 00 | 1A39DE00 | 1A39DE00 | 00 | 00 | 0000 | 0000 | 00 | 00 | 00 | 00 | 00 | 00 | 01 | 00 | 00 | ||||||
| S2 | 05 | 00 | 1A39DE00 | 1A39DE00 | 00 | 00 | 0000 | 0000 | 00 | 00 | 03 | 00 | 00 | 00 | 01 | 00 | 00 | ||||||
| S2 | 06 | 00 | 1A39DE00 | 1A39DE00 | 00 | 00 | 0000 | 0000 | 00 | 00 | 03 | 00 | 00 | 00 | 01 | 00 | 00 | ||||||
| S2 | 07 | 00 | 1A39DE00 | 1A39DE00 | 00 | 00 | 0000 | 0000 | 00 | 00 | 03 | 00 | 00 | 00 | 01 | 00 | 00 | ||||||
| S2 | 08 | 00 | 1A39DE00 | 1A39DE00 | 00 | 00 | 0000 | 0000 | 00 | 00 | 03 | 00 | 00 | 00 | 01 | 00 | 00 | ||||||
| S2 | 09 | 00 | 1A39DE00 | 1A39DE00 | 00 | 00 | 0000 | 0000 | 00 | 00 | 03 | 00 | 00 | 00 | 01 | 00 | 00 | ||||||
| S2 | 0A | 00 | 1A39DE00 | 1A39DE00 | 00 | 00 | 0000 | 0000 | 00 | 00 | 03 | 00 | 00 | 00 | 01 | 00 | 00 | ||||||
| S2 | 0B | 00 | 1A39DE00 | 1A39DE00 | 00 | 00 | 0000 | 0000 | 00 | 00 | 03 | 00 | 00 | 00 | 01 | 00 | 00 | ||||||
| S2 | 0C | 00 | 1A39DE00 | 1A39DE00 | 00 | 00 | 0000 | 0000 | 00 | 00 | 03 | 00 | 00 | 00 | 01 | 00 | 00 | ||||||
| S3 | 01 | 0C |
Z |
||||||||||||||||||||
|
Programming Sabers Out of Band Read Data from your Radio Edit the Radio Channel Defination , ignore the Tx and Rx Frequencies. Program the Tx PL , Rx PL ; Pre/Deemphasis ; MDC ID on PTT etc . . . Save Codeplug Data to Archive File with Filename ( eg : saber1 ) Exit the RSS. Open the Dictionary file RPFDATA.DCT and find the line that contains the filename , model number , option number and a eight character filename for the actual programming file. eg : saber1 H44SAN7139CN H99SA000H ABCDABCD Open the eight character filename with EDITOR and look for the lines that begin with S2 . . . . Enter the new Rx and Tx frequencies in HEX ( with ref. to the above table ) Save the file and exit the EDITOR. Open the RSS . Load the file and program the radio . Don't try to look at it in the Radio Channel Definition window, or it will reset to discard the Out of Band Frequencies GOOD LUCK ! |
|
|
|
||||||||||||||||||
| 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | |
| 0 | 0 | @ | P | ` | p | |||
| 1 | ! | 1 | A | Q | a | q | ||
| 2 | " | 2 | B | R | b | r | ||
| 3 | # | 3 | C | S | c | s | ||
| 4 | $ | 4 | D | T | d | t | ||
| 5 | % | 5 | E | U | e | u | ||
| 6 | & | 6 | F | V | f | v | ||
| 7 | ' | 7 | G | W | g | w | ||
| 8 | ( | 8 | H | X | h | x | ||
| 9 | ) | 9 | I | Y | i | y | ||
| A | * | : | J | Z | j | z | ||
| B | + | ; | K | [ | k | |||
| C | , | < | L | \ | l | |||
| D | - | = | M | ] | m | |||
| E | . | > | N | ^ | n | |||
| F | / | ? | 0 | _ | o |
